LIONLED Outdoor Digital Sign P4.23 1ft*1ft IP68 For Hotel/Sign

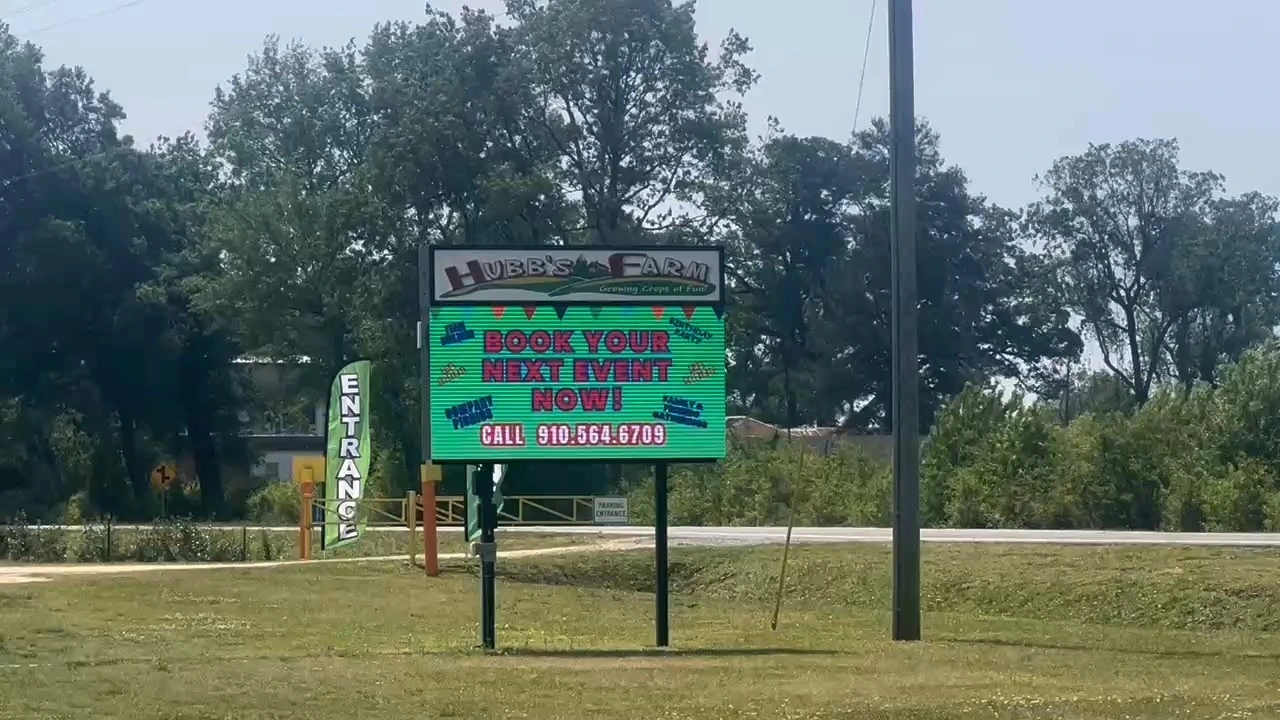

LIONLED's FT series of outdoor solid mount LED displays are available in a variety of pixel pitches, typically ranging from P4.23 to P9.5. Uniformly waterproof to an ultra-high IP68 rating, with a refresh rate of up to 3840Hz, they support front and rear maintenance, and feature 1FT*1FT module sizes in aluminum extrusion cabinet that are customized for U.S. customers. With a brightness of up to 10,000 nits, these LED displays are super bright and ideal for outdoor locations such as shopping centers, hotels, stadiums, theme parks and more.
Pixel Pitch：4.76mm
Module Size: 1ft×1ft(304.8mm×304.8mm)
Cabinet Size： 2ft×4ft/Custom Made
Pixel Density：44010pixels/m²
Brightness：7000-10000cd/m²
Scan: 1/8
Refresh Rate：1920Hz-3840Hz
Color：Full color
Waterproof：IP68
Life Span: 100000 hours
Warranty：6 Years
Certificate：CE,FCC,ROHS,UL,PSE
Supplier Type：Original manufacturer,ODM,OEM
Media Available：Datesheet,Photo,EDA/CAD Models,Other
Product advantages
Product parameters
| Pixel Pitch(mm) | 4.23 | 6.35 | 9.5 |
| LED Type | SMD1921 | SMD2727 | |
| Pixel Density(pixles/m²) | 44010 | 24800 | 11022 |
| Brightness(cd/m²) | 7000-10000 | ||
| Scan | 1/8 | 1/6 | 1/2 |
| Refresh Rate (Hz) | 1920Hz-3840Hz | ||
| Cabinet Dimension(W*H)(mm) | Aluminum Extrusion Cabinet | ||
| Cabinet Size (mm) | 2ft×4ft/Custom Made | ||
| Module Size (mm) | 1ft×1ft（304.8mm×304.8mm） | ||
| Weight (KG/cabinet) | 24KG | ||
| Maintenance method | Front/Back | ||
| Horizontal/Vertical Viewing Angle | ≥140°/≥120° | ||
| Gray Scale | 14 | ||
| Protection Level | Ip68 | ||
| Colour Temp | 6000~12000K | ||
| Input Signal | HDMI.DVI/VGA.RGBHV Composite,SVIDEO.YPbPr(HDTV) etc... | ||
| Max Power Consumption(W/m²) | 500 | ||
| Avg.Power consumption(W/m²) | 150 | ||
Product Features
Light,Thin And Cost-Saving. The single cabinet is 25 kg and 4.2Inch(120mm)thickness,saving
transportation and installation cost.
1 FT(304.8 MM)by 1 FT(304.8 MM)module size.Signal and power cableintegrated,good for
waterproof and maintenance.
