Preview of a P8 transparent LED film retail window demonstration

LIONLED P8 transparent LED film displaying promotions on a retail window

Close-up of a LIONLED P8 transparent LED film module

P8 Flexible Transparent LED Display for Retail Windows 4

View through a P8 transparent LED film window with the display switched off

Product graphics and promotional text displayed on a P8 LED film window

P8 Flexible Transparent LED Display for Retail Windows

Its 8 mm pixel pitch can be evaluated for brand graphics, product visuals and campaign messages on your available glass area. Send your window dimensions and viewing requirements to compare the P8 layout with other pixel-pitch options.

Pixel Pitch: 8mm

Module Size: 1000mm×240mm

Cabinet Size: Customizable

Pixel Density: 15625pixels/m²

Brightness: 4000cd/m²

Refresh Rate: 3840Hz

Color：Full Color

Waterproof：IP30

Life Span： 100000 hours

Warranty： 6 years

Certificate：CE,FCC,ROHS,UL,PSE

Supplier Type：Original manufacturer,ODM, OEM

Media Available：Datasheet, Photo, EDA/CAD Models, Other

Inquiry

Write a Review

Product advantages

High transparency, it‘s almost completely integrated into the glass.

Ultra-light and thin, with a thickness of 3mm, and a weight as 3.5kg/m 2 .

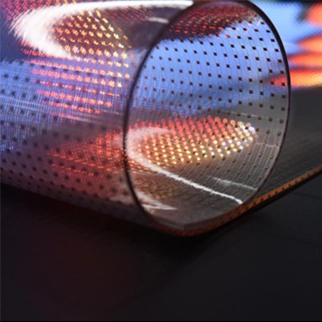

Flexible, LED crystal film screen with strong flexibility .

Support arbitrary cutting, not limited by size and shape.

Quick installation, can be directly pasted on the glass surface.

Product parameters

Pixel Pitch(mm)	4	6	8	10
LED Type	SMD1010	SMD2121
Pixel Density(pixles/m²)	62500	27556	15625	10000
Brightness(cd/m²)	3500	3500	4000	4000
Permeability	85%	85%	85%	90%
Refresh Rate (Hz)	≥3840HZ
Weight (lb/cabinet)	3.5KG
Cabinet Size (mm)	Customizable
Module Size (mm)	1000mm*240mm
Horizontal/Vertical Viewing Angle	≥140°/≥140°
Gray Scale	16
Protection Level	IP30
Colour Temp	3200-8500K
Input Signal	HDMI, DVI/VGA.RGBHV Composite, S- VIDEO,YPbPr(HDTV)etc...
Max Power Consumption(W/m²)	600
Avg.Power Consumption(W/m²)	200

Product Features

No steel structure is required, just stick the thin screen slightly and connect the power signal.

Self-developed glue filling process (the screen body with its own viscosity can be directly attached to the glass surface, with strong colloid adsorption, and the viscosity will also increase with the passage of time due to the inherent characteristics of the colloid).

UV resistance without yellowing >8 years.

Grade V1 flame retardant

application

Transparent LED display is a new type of display technology with high

transparency, vivid colors and high brightness. In stores, transparent LED displays can be applied to store glass windows to attract customers' attention and improve the brand image of the store.We propose a transparent LED display in the store glass window application scheme. The solution uses transparent LED displays installed on store glass windows to facilitate stores to display advertising messages and attract customers' attention without

taking up large areas of space.
